INTRODUCTION

Executing the bruting as per the plan has been always challenging and a lengthy iterative process, particularly while bruting Fancy shape diamonds. Now you have a very effective Fancy bruting machine resulting in a very high quality final bruting as per your SMART-AnyCut and SMART-Asymmetric RBC plan.

Here comes AQUA2 FancyBruter to precisely follow your plan. In recent years, the Fancy cut allocation is stretched to achieve extra mass while maintaining beautiful fold symmetry, the look, and the cut grade. The operator must get an opportunity to follow the plan with utmost precision. AQUA2 FancyBruter helps in the process

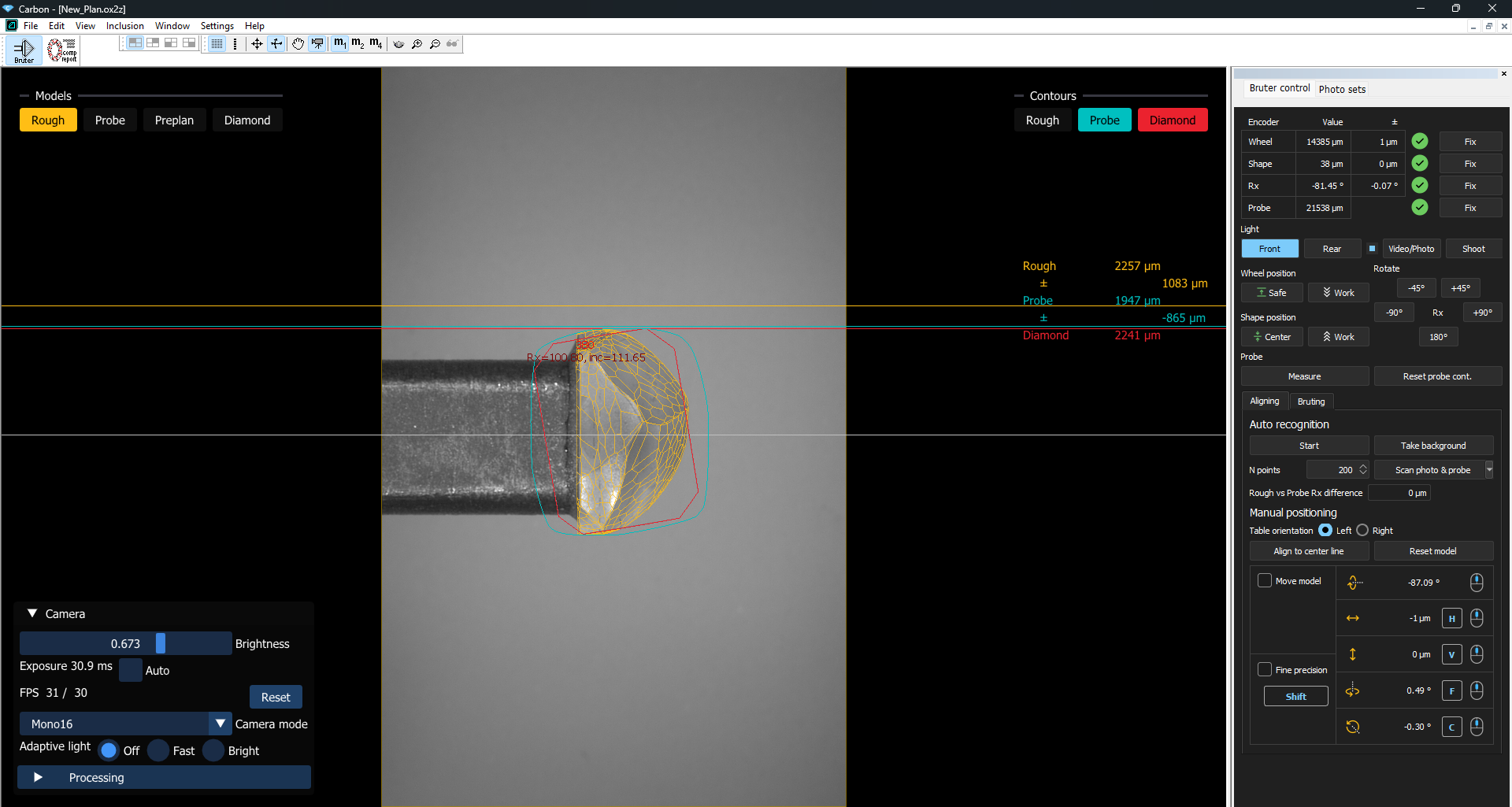

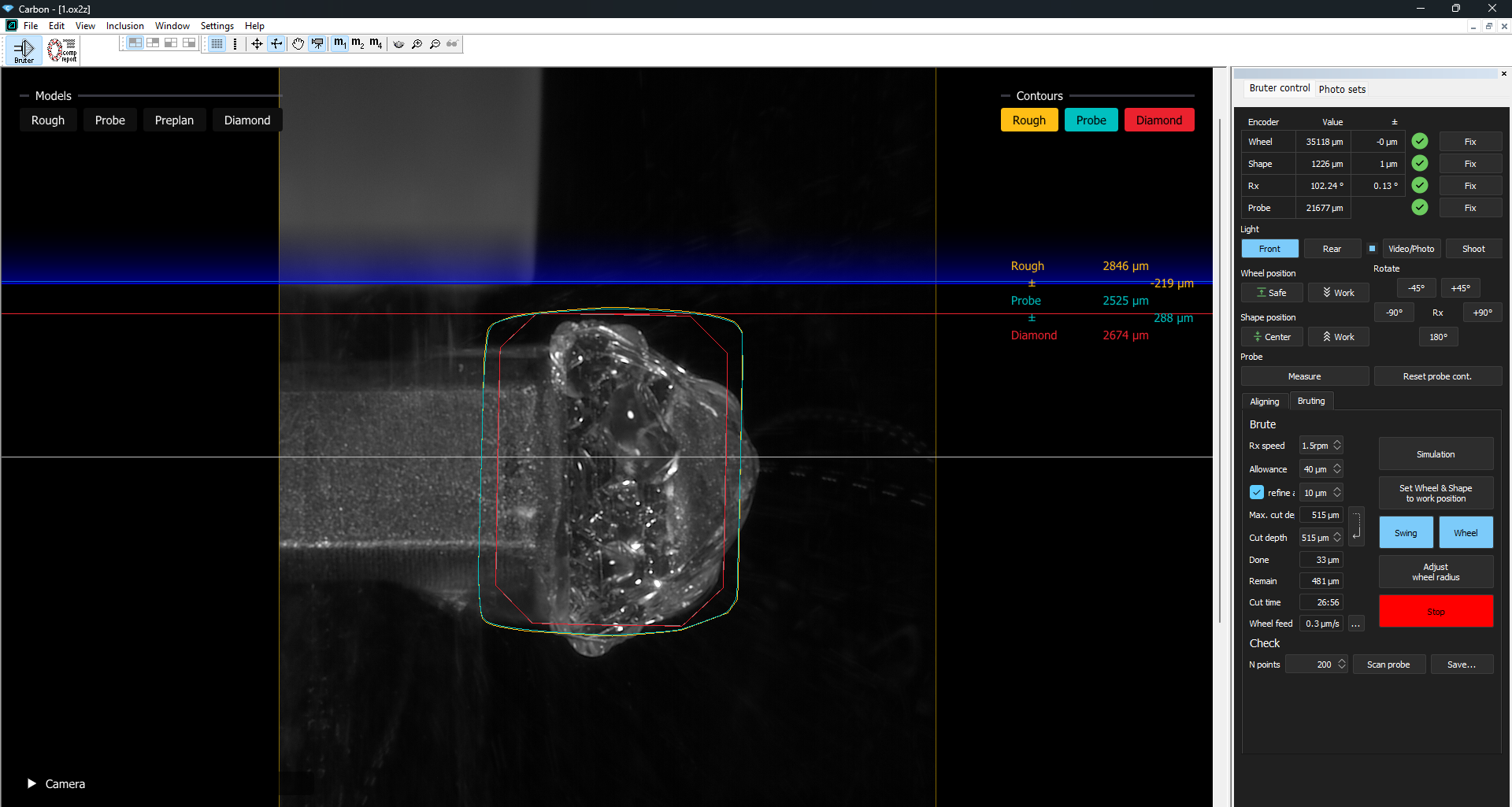

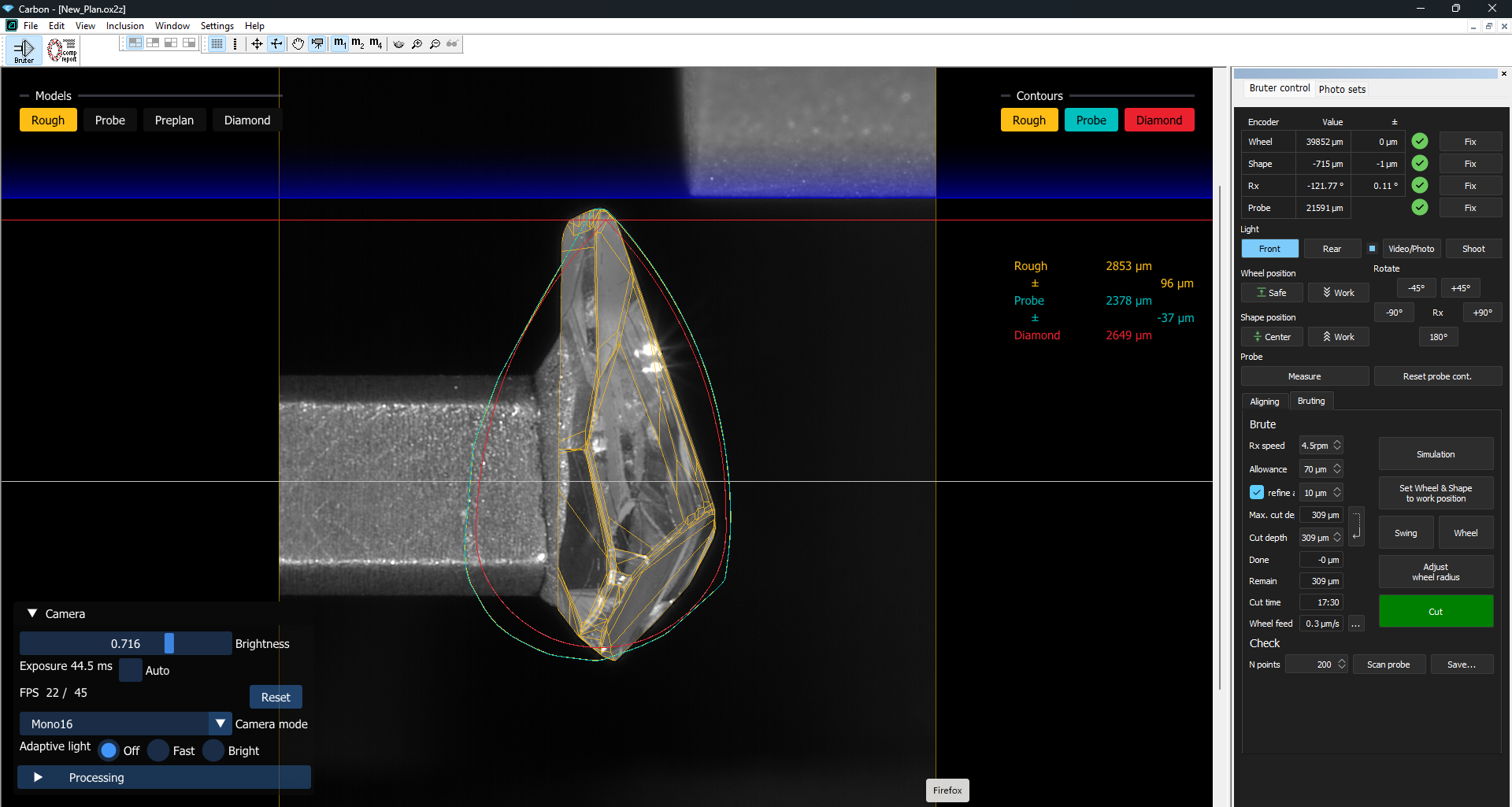

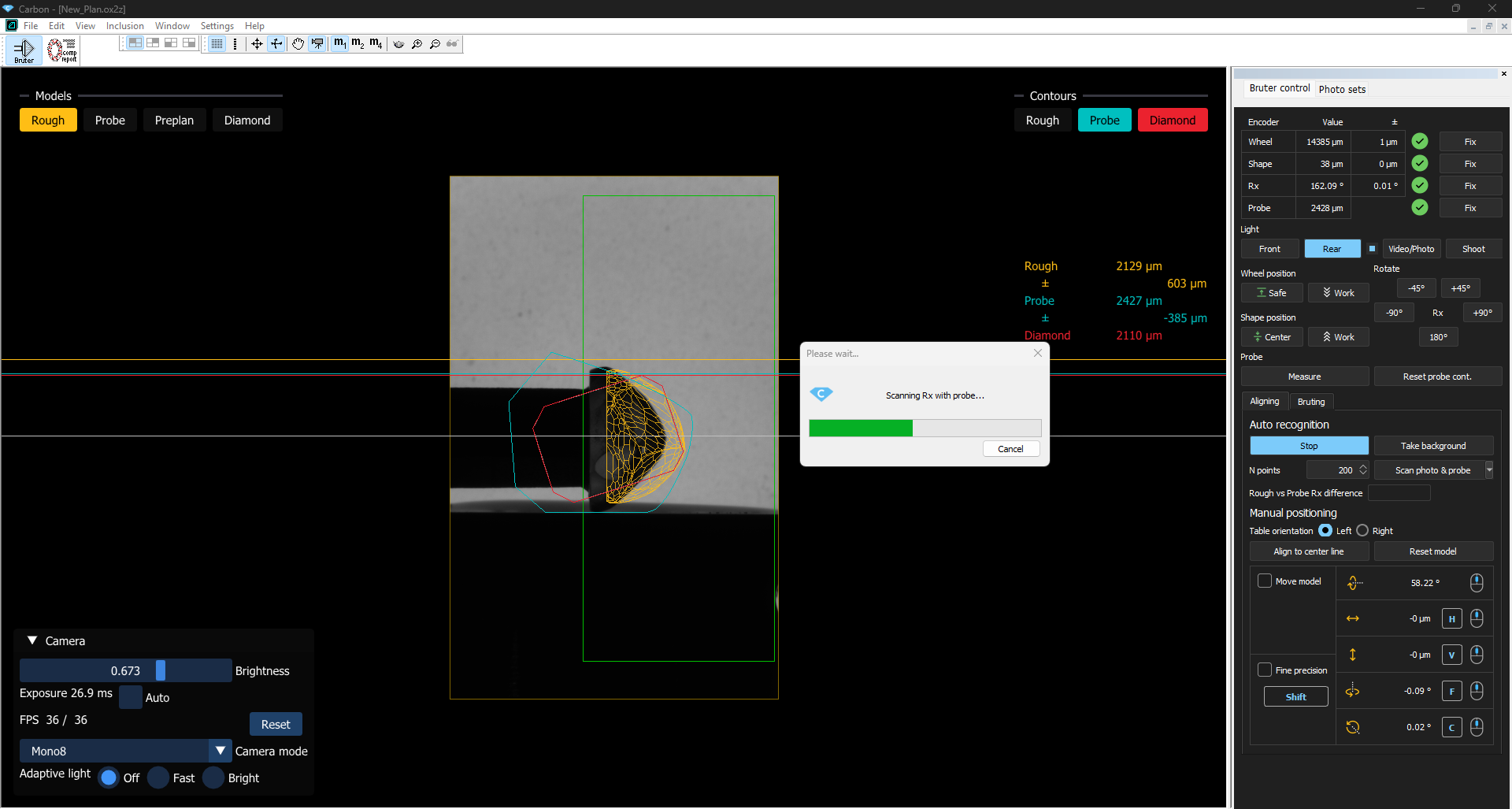

Software Screenshots

Salient Features

The final Carbon file can be directly imported for precise execution.
High Accuracy Touch Probe to align the model over the diamond to ensure highest centering accuracy.
No need to center the stone. The model automatically aligns on the diamond Probe scan.
Suitable for all convex shapes.
Suitable for diamond size between 3 mm to 30 mm.
The diamond is glued to the pot for complete visibility, and safe operation.
Adaptive Lighting allows you to see glare free diamond image, and control the final depth, while observing naturals.
The Ceramic Scaife is dipped into water to keep the diamond cool at all the times, avoiding any damage due to heating.
No need to have any flat facet on the girdle while bruting a symmetric shape or RBC bruting.
Completely automatic, vibration-free operation.
High productivity thru SMART bruting algorithm and reducing idle time.
One operator can process many machines at one time.
Intuitive operation ensures very little training requirement.
Very Large FoV with high precision.

Specification


Field of view	16 mm x 10 mm.
Size Range	3.00 mm to 15.0 mm
Diamond shapes	All convex shapes
Camera pixel size	0.009 mm
CMOS Camera	1/1.2” (1920 x 1200)
Direct measurement	0.001 mm least count (radius)
Input from	SMART AnyCut & Recut software Carbon
Warranty	12 months
Top light	Adaptive Light
Back light	Yes
Diamond holding	Glued at Table
Machine dimension	610L x 775W x 625H mm
Weight	110kg
Power supply	230V 50Hz Single Phase – 400watts

Price (Ex-works)


Module	Price in €
Aqua2 Fancy Bruter	€ 32000* (without Computer and Compressor)
ALL THE PRICES ARE EX-WORKS, SURAT, EXCLUDING FREIGHT, INSURANCE, PACKING & FORWARDING AND TAXES.

* Quantity Discount
Qty	Discount
1 to 2	0 %
3 to 5	2.5 %
6 to 15	5 %
16 to 40	7.5 %
41+	12.5 %

Terms & Conditions

Additional 10% discount to the company who orders the first 10 units under a single order.
The offer is valid for single order and single payment only.
The discount offer cannot be used in conjunction with any other company.
The payment should be in 100% advance.
Discount valid till 31^st June, 2024.
All prices are subject to change without notice and are not guaranteed, except that price for an order that LEXUS SOFTMAC has accepted.
