Laser Inscription

Home Grading & Branding Laser Inscription

Functions

Salient Features

Differentiate

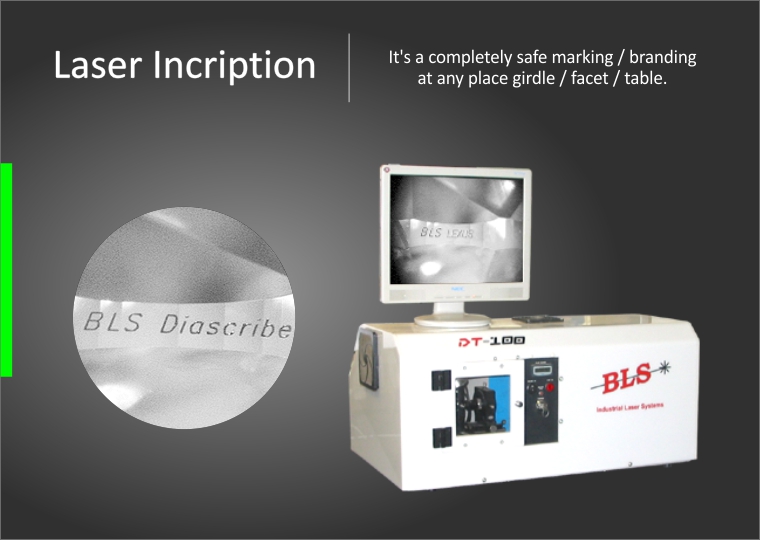

Gemscriptor DT150

Machine main features and / or applications

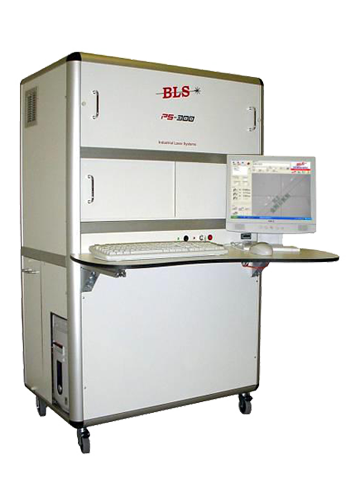

Gemscriptor PS300

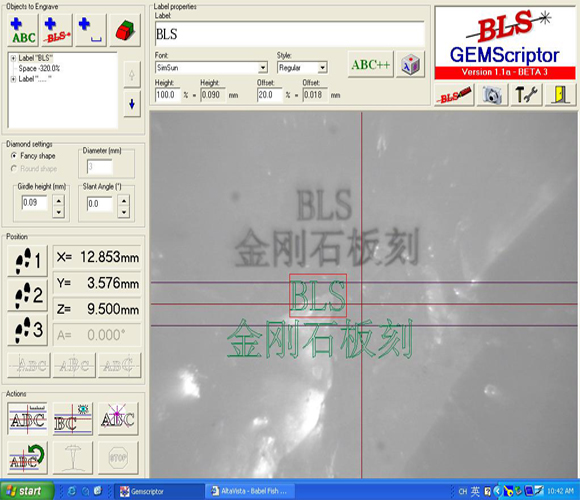

The BLS Gemscriptor PS300.is a top grade, cold UV laser, diamond inscription machines. This unit will inscribe all sorts of gems without fear of chipping the stone (Guaranteed). The PS300 is a smaller desk top unit for medium productions (average 200 stones /day). It has the same capabilities as the PS500: marking on any shape of diamond, any size and also on set stones. Marking of all true type fonts. All Microsoft languages are supported. Import of logo’s, pictures, DXF formats are standard.

Machine main features and / or applications

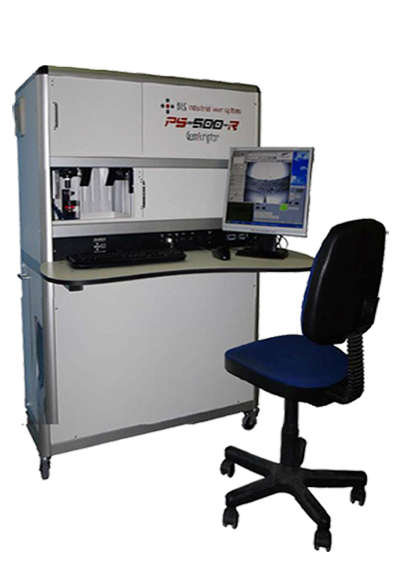

Gemscriptor PS500

The highest productivity diamond marking machine in the market. This laser marks up to 600 stones and more in one work day, one logo and up to 12 digits (Figures given by our customers). Mark on any type, any size of stones on the girdle or any other place on the diamond. The long life solid state UV laser is good for billions of shots, this long life feature is your guarantee to a profitable business. Meet the lowest cost price per marked unit.

Machine main features and / or applications

Features Comparison
SR.NO Features Laser Inscription DT-150 Laser Inscription PS-300 Laser Inscription PS-500
1 Wave length 1062 nm 193 nm 193 nm
2 Pulse energy 200μJ 7,5 mJ 12 mJ
3 Energy density mm² 0,66 mJ 8,3 mJ 0,66 mJ
4 Max. Rep. Rate 100 - 2000 Hz 300 Hz 250 Hz
5 Power selection 10% to 100%
6 Pulse length 20 ns 10 ns 10 ns
7 Stability <2% <2% <2%
8 Peak power 10 kW
9 Beam size 3,3 mm 2,5x 3 mm 6x 3 mm
10 Divergence 0,5 x 1 m Rad full angle 2 x 3 m Rad full angle 0.5 x 1 m Rad full angle
11 Type of laser Fiber BLS EXCIMER UV BLS EXCIMER UV
12 X – Y - Z axis 25 mm, travel. High precision 25 mm, travel. High precision 25 mm, travel. High precision
13 Max. Working speed 2 mm/sec 1 mm/sec 2 mm/sec
14 Backlash free screw pitch: 1 mm pitch: 1 mm pitch: 1 mm
15 Guidance linearity 10μ for Z axis, 2mm/100 mm for X – Y axes 10μ for Z axis, 2mm/100 mm for X – Y axes 10μ for Z axis, 2 μ /100 mm for X – Y axes
16 Optical encoder 500 lines
17 Repeatability Z axis 10mm (vertical) X – Y axis 2μm (horizontal) Z axis 10mm (vertical) X – Y axis 2μm (horizontal) Z axis 10 μ (vertical) X – Y axis 2μm (horizontal)
18 Smallest step, resolution 0.2μm 0.2μm 0.12 μ
19 Dynamic gas life time 8000000 8000000
20 Tube service 50-80 Million Pulses 0.5 Billion Pulses

Price (Ex-works)
Module Price in €
Laser Inscription € 00,000.00
ALL THE PRICES ARE EX-WORKS, SURAT, EXCLUDING FREIGHT, INSURANCE, PACKING & FORWARDING AND TAXES.
