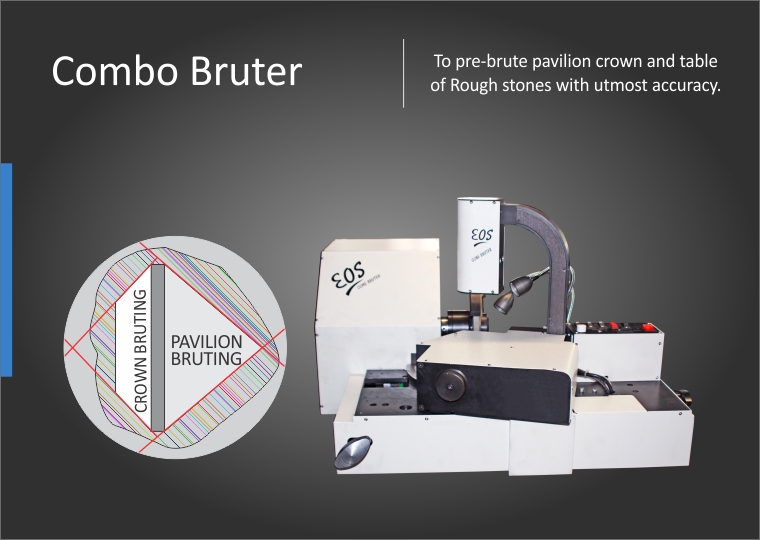

EOS Combo Bruter

Home Bruting EOS Combo Bruter

Functions

Diamond Holding

Shapes

Sizes

Salient Features

Extra Accessories
  1. Table Setting Station
  2. Portable Refractometer

Specification
Field of View User Definable (to maximize accuracy)
Diamond types Any model
Weight (w\o Comp.) 75 Kgs.
Dimension L 680 x H 330 x D 640 mm (excluding computer system)
Supply 415 V AC, 50Hz, 3Phase
Maximum Power 0.5 KW
No Load Current 1Amp (excluding computer system)
Temperature Mi 50° - Max. 350°
Rpm scaife 1400 rpm
Rpm stone 180 rpm (approx)
Stroking speed 15 strokes/min
Table Blocking Modes Completely automatic with user defined cycles, Zoet mode.
Facet Blocking modes Completely automatic with user defined cycles, Zoet mode.
Lighting Advance controlled dual DC LED light with luminance control.
Controls All controls “On screen”, controllable with Mouse / Key Board.
LAN configurability Possible to configure in LAN with complete automation and report printing.
Warranty 24 months manufacturing warranty (12 months for free service)

Price (Ex-works)
Module Price in €
EOS Combo Bruter € Not Available
ALL THE PRICES ARE EX-WORKS, SURAT, EXCLUDING FREIGHT, INSURANCE, PACKING & FORWARDING AND TAXES.
