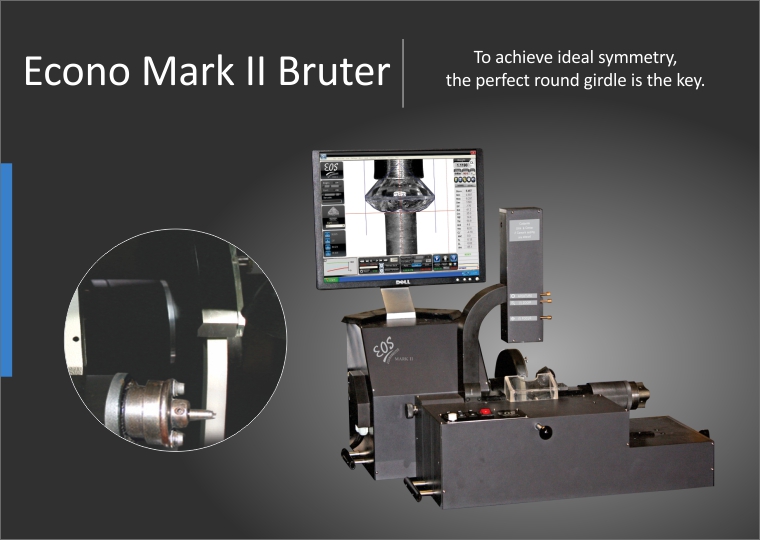

EOS EconoBruter Mark-II

Home Bruting EOS EconoBruter Mark-II

Functions

Optical Variant

Specially designed to work with diamonds glued on 8mm pots available on special request.

Shapes

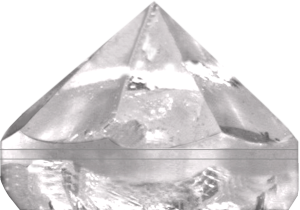

Round, Marquise.

Sizes

From 0.05 Ct To 500 Cts

Salient Features

Extra Accessories
  1. Centering machine for Rounds while using glued makeable stones.
  2. Centering machine for Marquise.
  3. Portable Refractometer.

VIDEO - Facilities to Zoom, adjust Exposure and Focus

Specification
Field of View User Definable (to maximize accuracy)
Diamond types Any model with pre-cut table-Round Brilliant Cut Marquise
Weight (w\o Comp.) 80 Kgs.
Dimension L730 * H 590 *D590 mm (excluding computer system)
Supply 415 V AC, 50Hz, 3Phase
Maximum Power 0.5 KW
No Load Current 1Amp (excluding computer system)
Temperature Mi 5° - Max. 35°
Rpm scaife 1400 rpm
Rpm stone 120 rpm (approx)
Stroking speed 15 strokes/min
Bruting Modes Completely automatic with user defined cycles, zoet mode.
Facet Blocking modes Completely automatic with user defined cycles, Zoet mode.
Lighting Advance controlled dual DC LED light with luminance control.

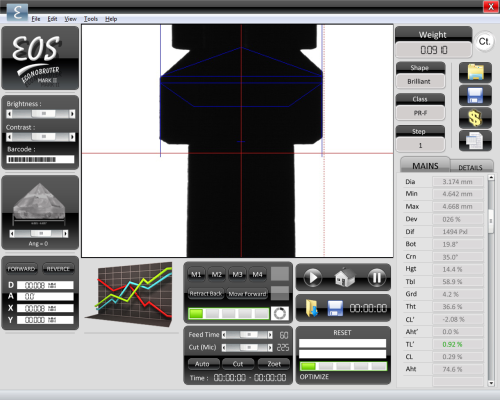

Controls All controls “On screen”, controllable with Mouse / Key Board.
LAN configurability Possible to configure in LAN with complete automation and report printing.
Warranty 24 months manufacturing warranty (12 months for free service)

Price (Ex-works)
Module Price in €
EOS EconoBruter Mark-II € 6200
ALL THE PRICES ARE EX-WORKS, SURAT, EXCLUDING FREIGHT, INSURANCE, PACKING & FORWARDING AND TAXES.
