Blocking & Faceting

Advanced Automated Blocking & Faceting System

VIBOX2.0 SLIM delivers automated blocking and faceting with exact angle control — slope and azimuth — eliminating manual guesswork and operator dependency at every stage.

  • Automatic slope and azimuth angle generation directly from Carbon design files
  • Precision-controlled blocking process for crown and pavilion facet alignment
  • High-speed processing with reduced manual setup and faster production workflow
  • Advanced laser path optimization for improved cutting precision and surface quality
  • Supports complex fancy shapes including Oval, Pear, Cushion, Marquise and Heart
  • Stable cutting performance for both small and large size diamond processing
  • Reduced rework and polishing correction through accurate facet generation
  • Optimized rough planning for improved material utilization and recovery yield
  • Real-time operational accuracy designed for continuous industrial production
Process
Faceting & Bruting Showcase

Round

Custom Bullet

Pear

Oval

Cushion

Round

Lord Krishna

Heart

harsh Sanghvi

Feature Comparison

ViBox2.0 SLIM compare ?

Side-by-side analysis across three laser faceting approaches

Generic Shape Faceting

Standard Galvo Laser M/c

✕
N/A
✕
N/A
✕
N/A
●
Fully Manual
✕
Facet slope angle tracking
Not supported
✕
Facet azimuth angle tracking
Not supported
●
Glue position
Culet — large cover area
✕
Unfinished facet risk
Very high — chip on pavilion, hanging facets
✕
File input
No input supported
●
Human skill level requirement
Very high
✕
GALAHAD Compass (AZ+Angle)-Ready
Not Possible
✕
General risk level
High — wrong focus start
✕
High-stress diamonds
Very high risk

MESM Faceting

Galvo Laser M/c

●
No Benefit
●
Reduced production
●
Loss
●
Semi automated
✓
Facet slope angle tracking
Yes
✓
Facet azimuth angle tracking
Yes
●
Glue position
Table — large cover area
●
Unfinished facet risk
Table cannot be finished
✓
File input
OBJ input from Carbon
●
Human skill level requirement
Very high
✕
GALAHAD Compass (AZ+Angle)-Ready
Not Possible
●
General risk level
High — wrong focus start
✕
High-stress diamonds
Very high risk

ViBox2.0 SLIM

Galvo Laser M/c — Most Cost Effective

✓
Fastest ROI
✓
Higher production
✓
Profitable
✓
Fully automated
✓
Facet slope angle tracking
Exactly same precision
✓
Facet azimuth angle tracking
Exactly same precision
✓
Glue position
Table — can be surface glued
✓
Unfinished facet risk
All facets completed in one stage
✓
File input
Connects Carbon to Laser M/c directly
✓
Human skill level requirement
Very low
✓
GALAHAD Compass (AZ+Angle)-Ready
Yes
✓
General risk level
Low
●
High-stress diamonds
High risk (manageable)
Generic Shape
Very risky — wrong focus start leads to high failure rates and inconsistent output quality.
MESM Faceting
Effective but risky — improved angle tracking, however table finishing limitations remain.
ViBox2.0 SLIM
Most cost-effective solution for LGDs and NDs without very high laser sawing risk.
High Profit
SLIM payback period (ROI)
5×
Extra direct profit from 2nd year
120
Max additional benefit per stone (ND)
Low
General risk — SLIM vs competitors

Discover Your Potential Savings, ROI & Profit Growth with ViBox2.0 SLIM

Gluing & Banding Sawing
Intelligent Automation

AI Glue Point Detection

Automatically detects and suggests the most stable glue point for high precision laser sawing workflow.

Smart Decision Engine

Fully Automatic Positioning

No manual judgement required. System intelligently decides optimal workflow automatically.

Production Consistency

Same Result Every Time

Uniform output quality across every stone without depending on operator experience.

01 / 03

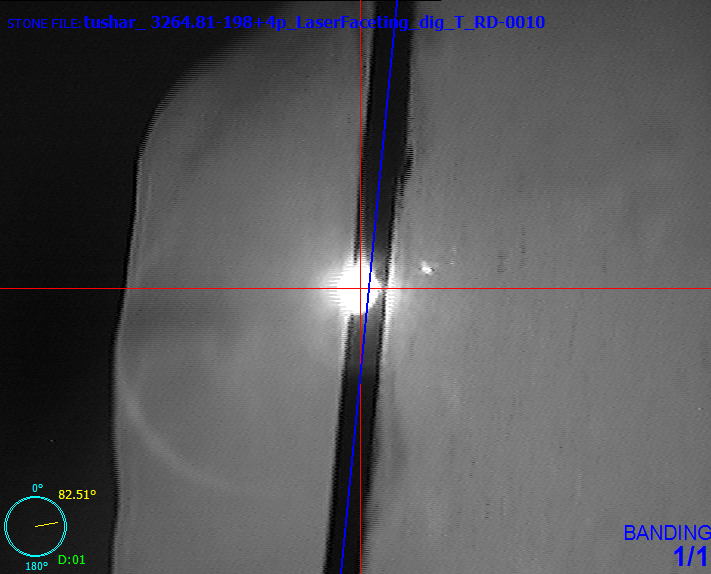

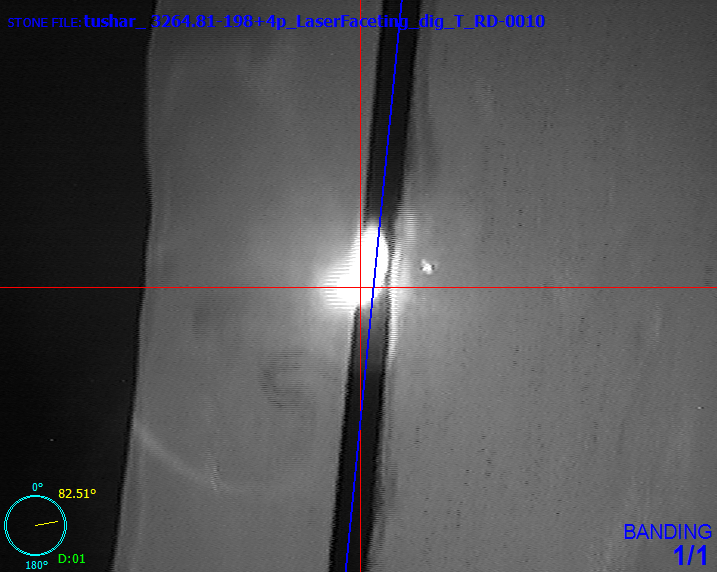

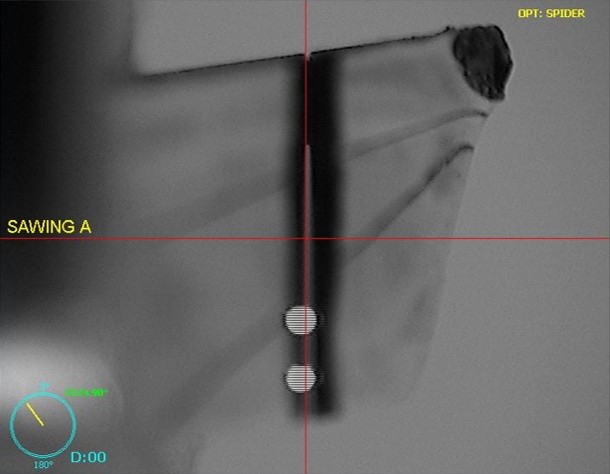

Banding A
Banding A

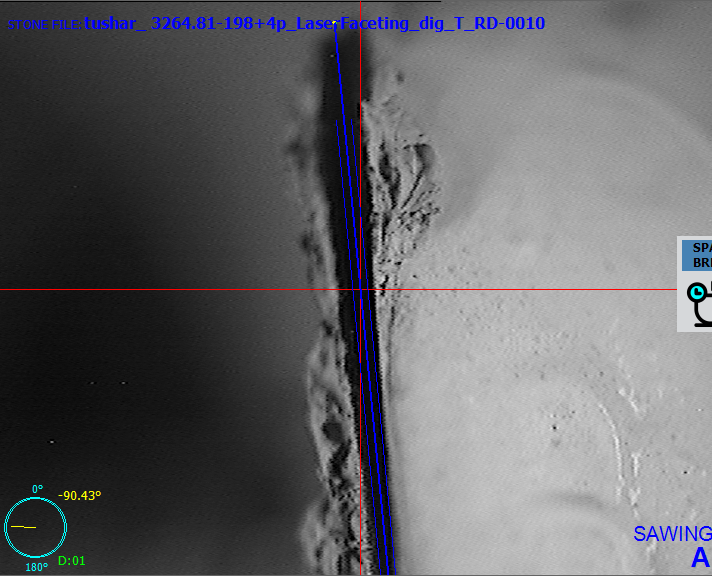

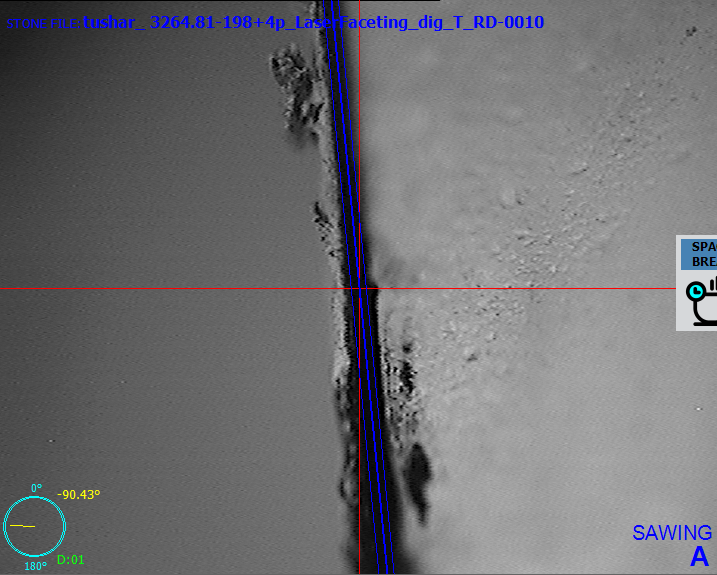

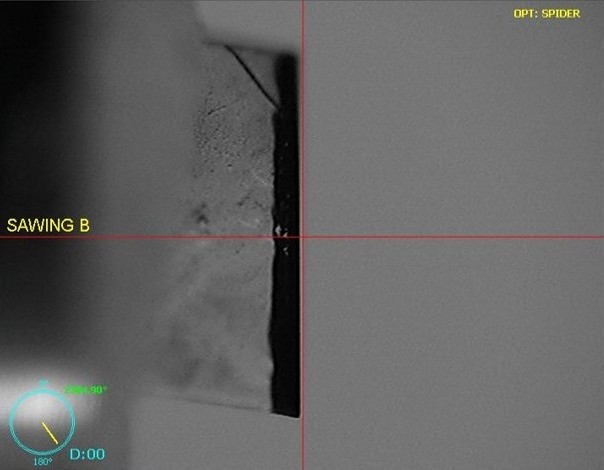

Sawing B
Sawing B
Banding A
Banding A
Sawing B
Sawing B
Banding A
Banding A
Sawing B
Sawing B
01 / 03
Salient Features
Machine Intelligence Preview

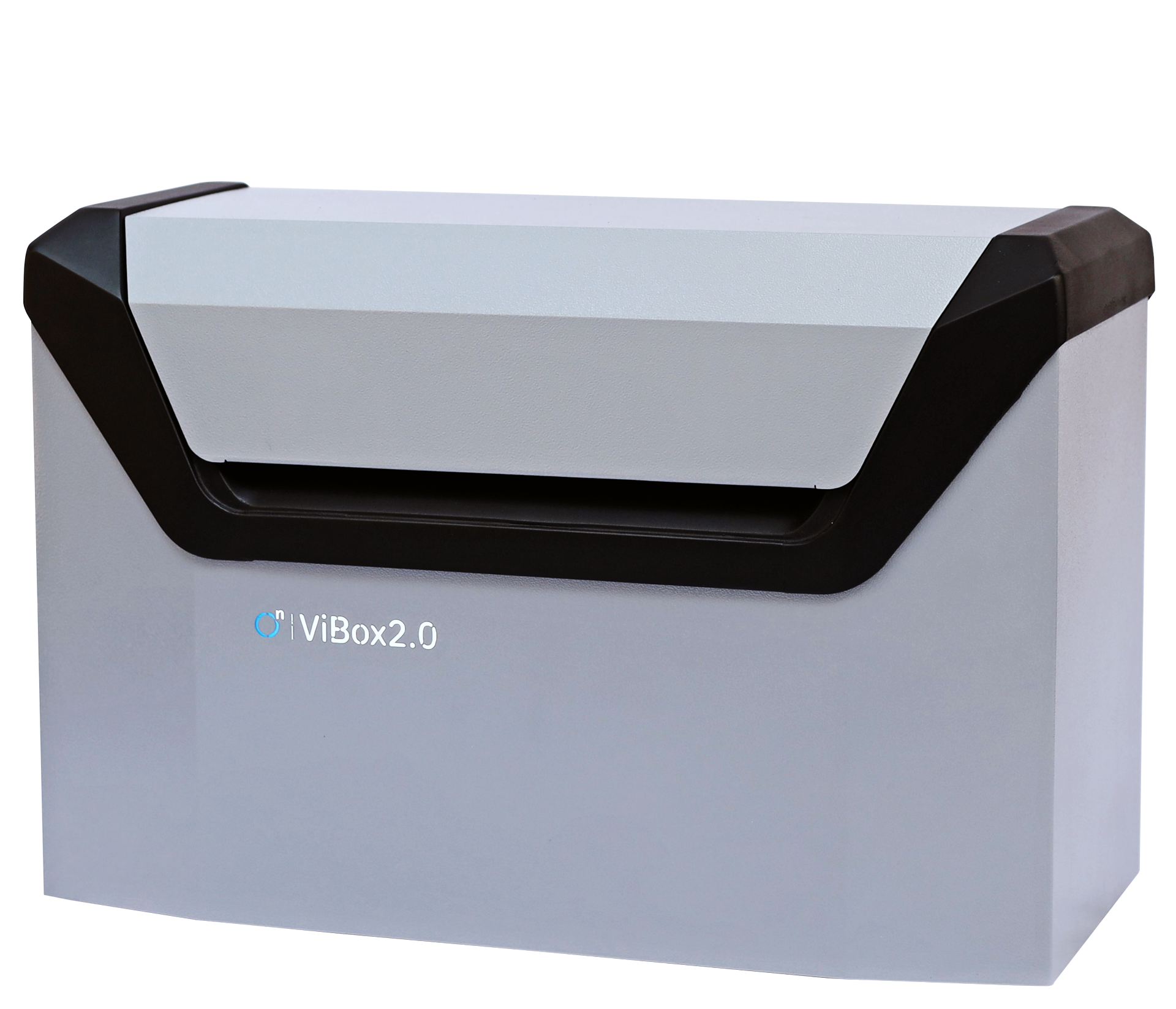

Product Specification
Weight
9 kg (Ex. Computer)
Dimension
L455 × W205 × H310 mm
FOV
H16 × L19.7 mm
Camera
Industrial
Power
100–240 VAC, 50/60 Hz, 4.0 A
Price (Ex-Works)
Model (Option 1) Price
ViBox2.0 SLIM Module
Including First Machine SaaS Fees 		€ 12500.00*
Number of Laser Machines integrated
Additional Units SaaS Fees
€600 per extra machine(non-refundable) 		€ 0.00*
Total € 12500.00*
The Prices Are Ex-Works, Surat
Pie Sawing
Applies to the smallest parts obtained from two pieces after pie sawing 		₹5 / carat
Standard Sawing Line
Applies to the smallest parts obtained from two pieces after standard sawing 		₹3 / carat
Girdle Shaping
Calculated based on the piece mass before girdle shaping 		₹2 / carat
Minimum charge: not less than ₹1 per operation (sawing line or girdle shaping) and not less than ₹10 per rough stone (including uploading to Cutwise)
Non Carbon File
Applies to the use of Non-Carbon file 		₹10 / file
SaaS Fees Second Year Onwards Amount (€)
Number of Laser Machines integrated
First Machine SaaS Fees (non-refundable) € 900.00*
Additional Units: Per-Machine SaaS Fees apply after the 1st installation (non-refundable) € 0.00*
Total SaaS Fees € 900.00*
Advanced Plan (Option 2-Unlimited) Amount (€)
Year 1
ViBox2.0 SLIM Module + 5 lasers (unlimited carats) 		€ 11,600 + € 9,000
Year 2 and onwards
Per year for 5 lasers (unlimited carats) 		€ 9,000 / year
Terms & Condition
  • The tax amount extra at actual
  • All payments for SaaS Fees, including those for additional machines, are non-refundable
  • Computer price not included
  • The payment should be in 100% advance
